PhysAnim

Welcome to the official documentation for PhysAnim.

PhysAnim is a lightweight Python library for simulating and animating physics systems like pendulums, springs, and planetary orbits.

Installation

pip install physanim

Quick Start

import physanim
from physanim.systems import DoublePendulum

# Create a customized double pendulum
pendulum = DoublePendulum(L1=1.0, L2=1.0, m1=1.0, m2=1.0)

# Theming
theme = {
    'background_color': '#222',
    'line_color': 'cyan',
    'trail_color': 'cyan',
    'trail_length': 20
}

# Animate
physanim.animate(pendulum, theme=theme)

🎮 Interactive Mode

PhysAnim supports real-time parameter tuning within Jupyter Notebooks using interact().

from physanim import interact
from physanim.systems import DoublePendulum

# Create sliders for gravity, length, and masses
interact(DoublePendulum, g=(9.0, 10.0), L1=(0.5, 2.0), m1=(1.0, 5.0))

Note: Requires pip install physanim[interactive] and a Jupyter environment.

Supported Systems

  • DoublePendulum: Chaotic double pendulum.
  • SpringMass: Simple harmonic oscillator.
  • PlanetarySystem: N-body orbital simulation.

Examples

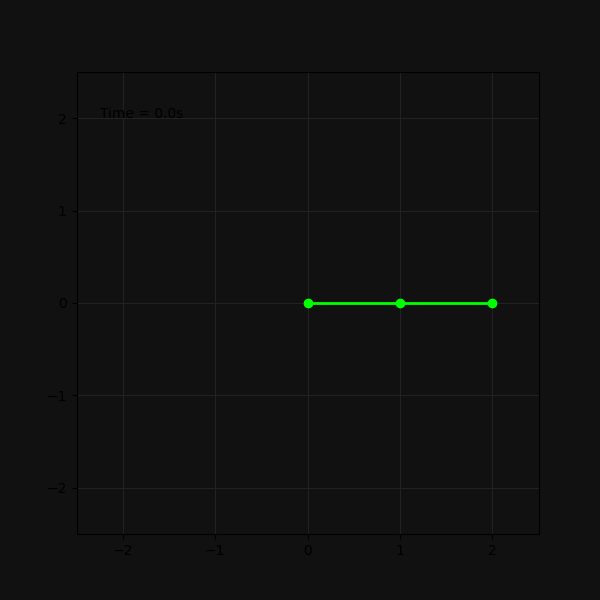

Cyberpunk Double Pendulum

Double Pendulum

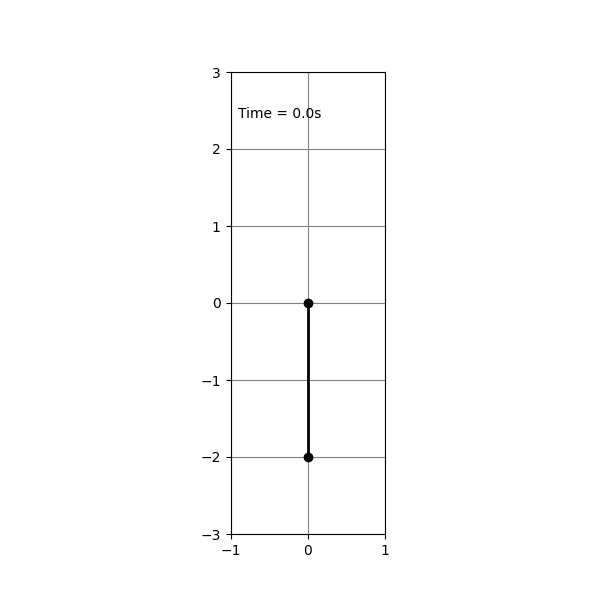

Spring Mass System

Spring Mass

Planetary Orbit (Three-Body)

Planetary System

License

This project is licensed under the MIT License - see the LICENSE file for details.
